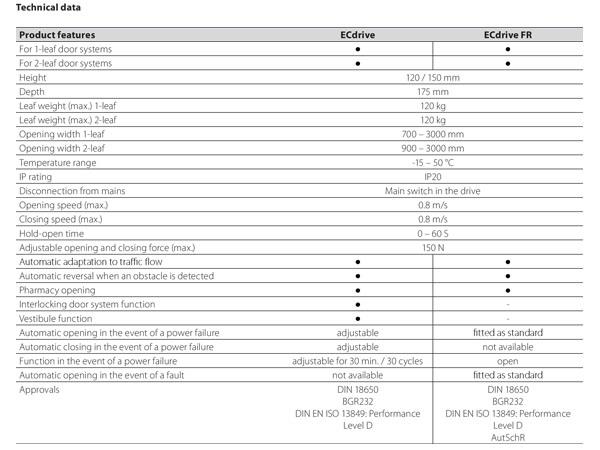

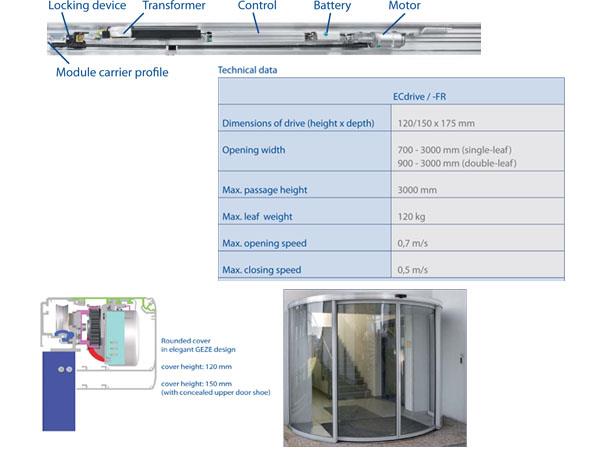

GEZE Automatic ECdrive Automatic sliding door drive電動平移門規範
Min. space requirement: 120 mm/150 mm height, 175 mm deep
最小安裝空間
Door weight capacity : 單扇Single leaf up to 120 kg
門扇重 : 雙扇Double leaf up to 2 x 120 kg
: 最大門重Max. weight 120 kg/leaf
Opening width : 單扇Single leaf 700 – 2000 mm
開門寬度 : 雙扇Double leaf 900 – 3000 mm
Opening speed : up to 0.7 m/s
開門速度
Closing speed : up to 0.7 m/s
關門速度
符合歐盟規格
1. EMC Directive 89/336/EEC
2. LOW-Voltage Directive 73/23/EEC
符合歐盟標準
1. DIN 18650
2. EN 55011
3. EN 60335-1
4. EN 61000-6-2
5. EN 60950
Control 控制 :
integrated main switch 整合型的主開關
hard wearing high performance DC motors 高性能直流馬達
control: self-learning with automatic fault detection
控制箱:自學功能, 自動偵錯功能
automatic adjustment of hold-open time (0-60 s) to frequency
of usage, hence optimised comfort use使用頻繁時,
可自動調整開門時間, 提升使用舒適性.
adjustable hold open time, opening width can be reduced
for winter operation, adjustable opening and closing speed
可調整開門滯留時間, 開門寬度 及開關門的速度
reversing function in OPEN and CLOSE direction, 開/關方向可改變
with battery for emergency opening and closing in the case of a power cut
內附備用電源以供停電時持續操作
static force limit to under 150N in accordance with ZH 1/94 (靜力限制150N 以下)
vertical safeguarding via ultrasonic sensor in the passage area 超音波安全裝置
radars black in colour 黑色雷達
1 display programme switch with foil keyboard and 7 digit display: permanently open,
automatic operation, shop closing time, night time locking, winter position
一隻七字程式開關顯示: 常開, 自動操作, 關閉時間, 夜間上鎖. 冬天位置
Activation device 活動裝置 : Motion Radar (Inside & Outside) 可動式雷達 (室內與室
外)
Safety device 安全裝置 : Safety light barrier (1 emitter and 1 receiver) 安全防夾裝
置
: Static force limit to under 150 N in accordance with
ZH 1/494 夾住的力超過150N 則自動再開
Mains power supply 電源 : 230 VAC + 6% - 10% at 50 Hz or 60 Hz
Max. power consumption : Max. 150 VA
|
