EL-404 電鎖

商品／實績名稱	EL-404 電鎖
商品／實績編號	1

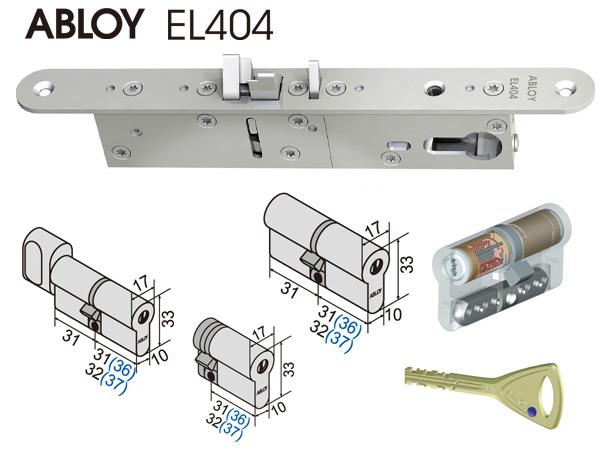

商品／實績介紹	ABLOY EL-404 芬蘭製高級電鎖 Technical details Operating voltage 12-24 VDC (-10%/+15%) Current consumption max 550 mA (12 VDC) idle 240 mA (12 VDC) max 270 mA (24 VDC) idle 110mA (24 VDC) Temperature range -20oC...+60oC Bolt throw 14,5 mm Adjustable backset 25, 30, 35 mm Forend 25 mm Finish Chrome plated forend Function Door can be opened by pushing or pulling when electric control is switched on. ABLOY® EL404 can be configured to operate also fail unlocked, when the door can be opened by pushing or pulling when the electric control is switched off. Lock can always be opened by key or by thumbturn and the lock deadlocks when the door closes. New functional features - Adjustable backset - Non-handed, symmetrical trigger bolt - Immediate release of deadlocking - Configurable fail locked / fail unlocked - Wide operating voltage ABLOY® EL404 is not recommended for use in doors with seal force. The locks can not be used in fire doors. In swinging doors the lock may be locked only when the door has completely stopped in the closed -position.
適用範圍

產品介紹
