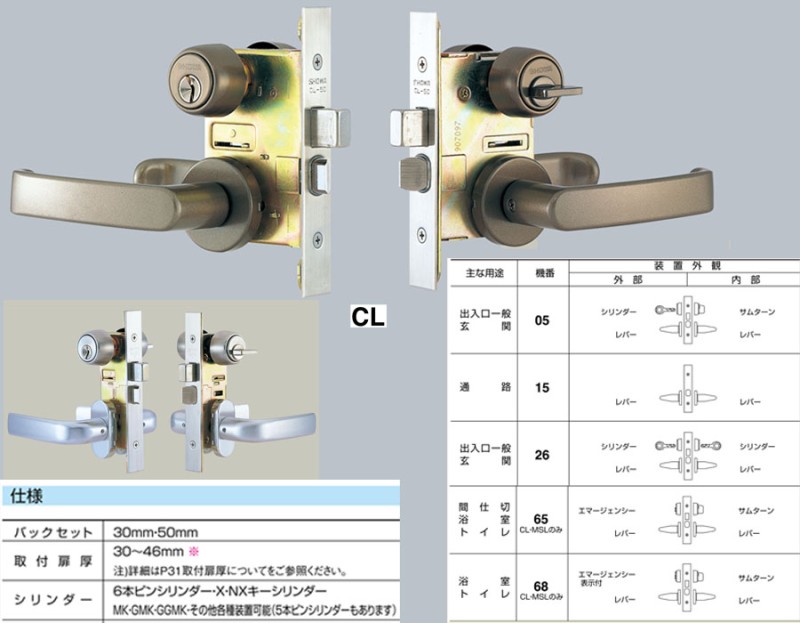

CL-05

■Features
Versatile lever handle suitable for all types of doors.
Can be used on aluminum doors, wooden doors, and steel doors, making it suitable for a wide range of applications.
Bar handle lock.
Quiet opening/closing function using resin for the latch.
A noise-reducing type that uses resin around the latch. silent opening and closing of the door
Realize. (Backset 50mm only)
You can freely change the left or right hand of the door.
For each machine number, the front was removed without removing the lock cover.
You can freely select left or right hand by simply setting the latch to the direction of the door.
You can choose.
■Features
Strong cylinder and thumb turn mounting design designed for reliability.
A stainless steel set pin that fits into the square hole of the lock case.
By inserting the , the cylinder and thumb turn are securely fixed. thread cutting
Strongly protects the lock from damage.
Adopts a strong security dead bolt.
Adopts a 17.5mm protruding deadbolt that boasts abundant strength against lateral pressure.
Backset 30mm has a protrusion of 15mm. Furthermore, insert a hardened steel plate to prevent cutting.
The integrated deadbolt design provides excellent strength against prying and cutting.
will demonstrate.
