393
●Main uses: general entrance/entrance, etc.
05・26・35
Easy and accurate installation
One-door, two-lock type with excellent security effects.

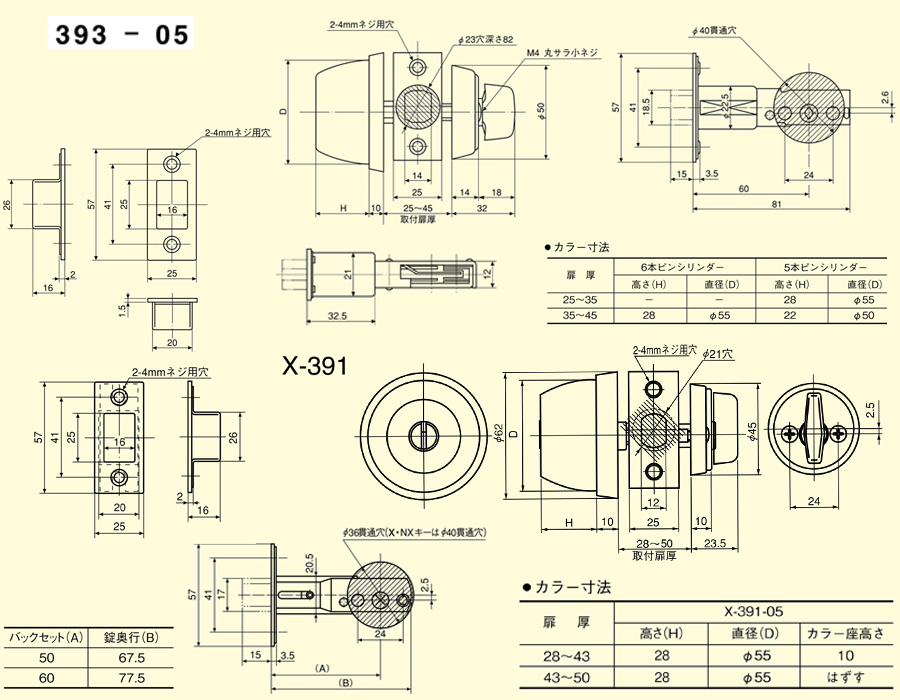

Notch outline drawing (for pin cylinder)
Mounting design that precisely secures the cylinder and thumb turn.
From the thumb turn inside the chamber, pull the cylinder leg with two setscrews,
Fix the cylinder with the thumb turn. Install accurately and securely
is possible.
A one-door/two-lock type that increases the security effect.
One-door-two that further enhances security performance when used in combination with other entrance locks.
Implement a lock system.
Easy installation type for easy construction.
A tube that can be easily installed by drilling two cylindrical holes in the door.
Blur book lock.

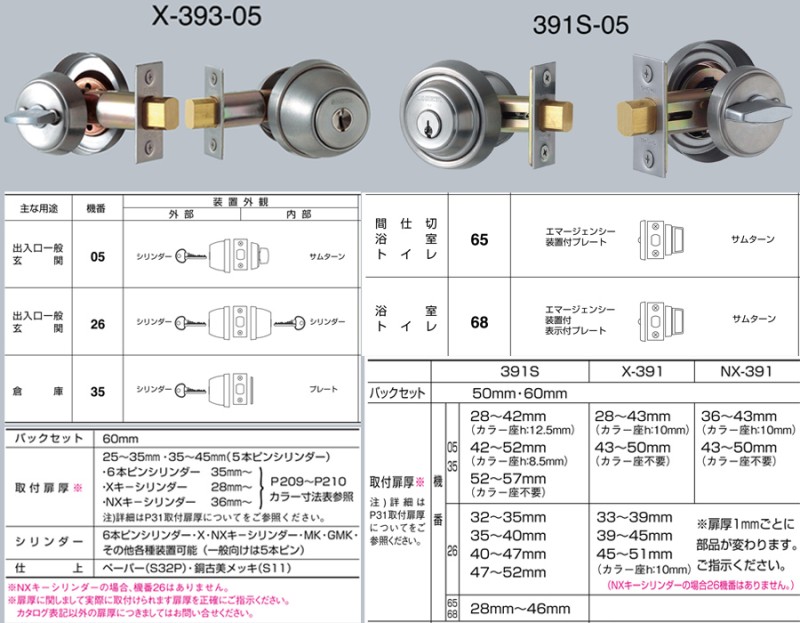

391S・X-391
●Main uses: general entrance/exit/bathroom/toilet, etc.
05・26・35・65・68
Attractive smooth key operation
One-door, two-lock type with excellent security effects.
Mounting design that precisely secures the cylinder and thumb turn.
From the thumb turn inside the chamber, pull the cylinder leg with two setscrews,
Fix the cylinder with the thumb turn. Install accurately and securely
is possible.
Comes with a key removal position mark for smooth key operation.
Set a mark on the cylinder for the key removal position. Makes it easier to remove the key
Provides smooth key operation.
Barrier-free X with key cylinder.
The key has no top and bottom, making it easy to insert. Also available with an "X key cylinder"
Masu. (X-391)
■Features
Easy installation type for easy construction.
A tube that can be easily installed by drilling two cylindrical holes in the door.
Blur book lock.
A one-door/two-lock type that increases the security effect.
A one-door two-lock lock that can be used in combination with other entrance locks to further enhance security performance.
system.
