X-CHD-05

*Entrance locks with the same dimensions are also available. Please refer to the CH series of case locks.
●Main uses: General entrances, entrances, warehouses, partitions, etc.

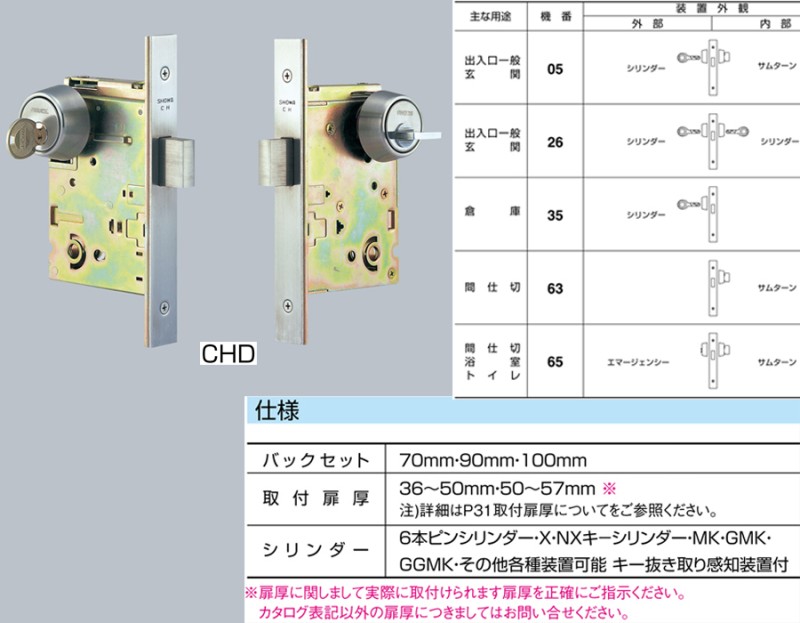

Series model number 05・26・35・63・65
Adopts a unique double locking mechanism,
Further pursuit of crime prevention performance.
Strong cylinder and thumb turn mounting design for reliability.
Insert the stainless steel set pin into the square hole of the lock case.
By inserting it, the cylinder and thumb turn are securely fixed to the lock case.
Strongly protects the lock from threading.
Adopts a strong deadbolt.
A dead bolt with a protrusion of 20.5mm boasts abundant strength against lateral pressure.
Adopted. Furthermore, our unique double locking mechanism allows for easy opening and cutting.
It exhibits excellent strength and is ideal for doors that will be used heavily.
■Features
Equipped with case steady rest device to suppress vibration.
Also suitable for installation on steel doors that are sensitive to vibration. Steady rest device in case
This prevents the lock from vibrating or tilting.
